107163

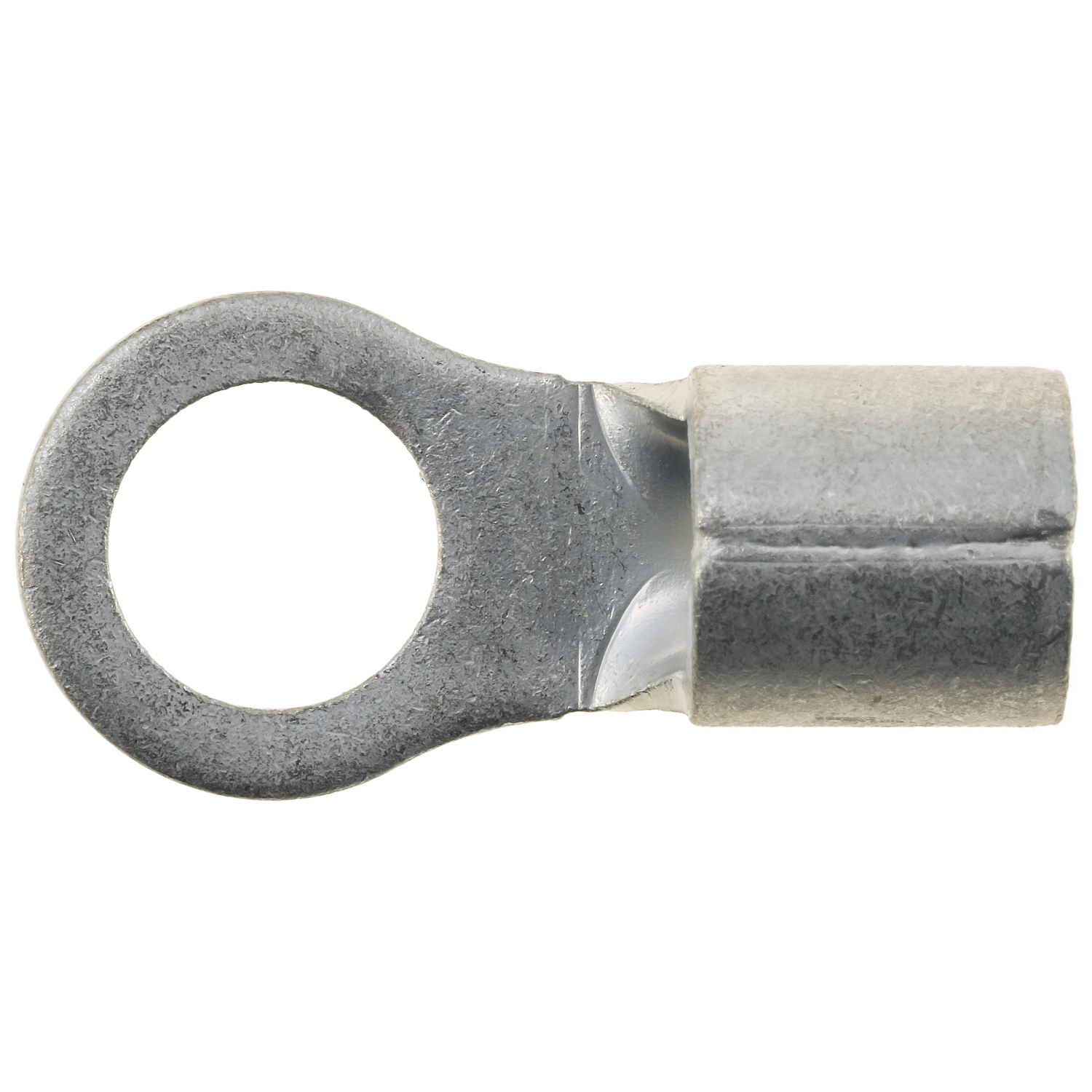

Our MAX® Lug Copper Brazed Seam Ring Terminal is made of 100% copper and tin-plated making it ideally suited for solder dipping applications.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100, 25 |
|---|---|
| Features | 100% copper, tin plated, Ideally suited for solder dipping applications, Serrated barrel increases pullout strength |
| Product Height | 0.45 in |
| SKU | 107163, 107163-025, 107163-100 |
| RoHS Compliant | Yes |
| Product Type | Straight lug |
| Product Width | 0.65 in |
| Product Length | 1.32 in |
| Color | Silver |
| Brand | Max |
| Works With | Side Posts |
| UL / CSA | No |
| Termination Method | Crimp |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| Stud Hole Size | 3/8 in |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Gauge | 4 |
| Application | General wiring as well as starter or ground connections |
| Product Weight | 0.01 lb |
| Country of Origin | Taiwan |
