107244

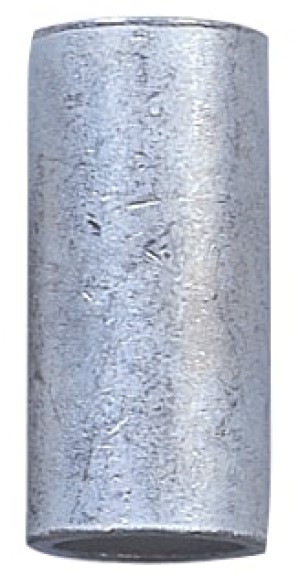

Our MAX® Lug Copper Brazed Seam Butt Splice is 100% copper, tin-plated and has a serrated barrel which increases pullout strength. This part is ideal for solder dipping applications.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
107244 INFO
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 100, 25 |
|---|---|
| Features | Ideally suited for solder dipping application, Serrated barrel increases pullout strength |
| Product Height | 0.52 in |
| SKU | 107244, 107244-025, 107244-100 |
| RoHS Compliant | Yes |
| Product Type | Brazed Seam Butt Splice |
| Product Width | 0.52 in |
| Product Length | 1.27 in |
| Color | Silver |
| Brand | Max |
| Product Weight | 0.04 lb |
| UL / CSA | No |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Gauge | 2 |
| Application | Solder Dipping |
| Country of Origin | Taiwan |
