Products • 123104A
123104A

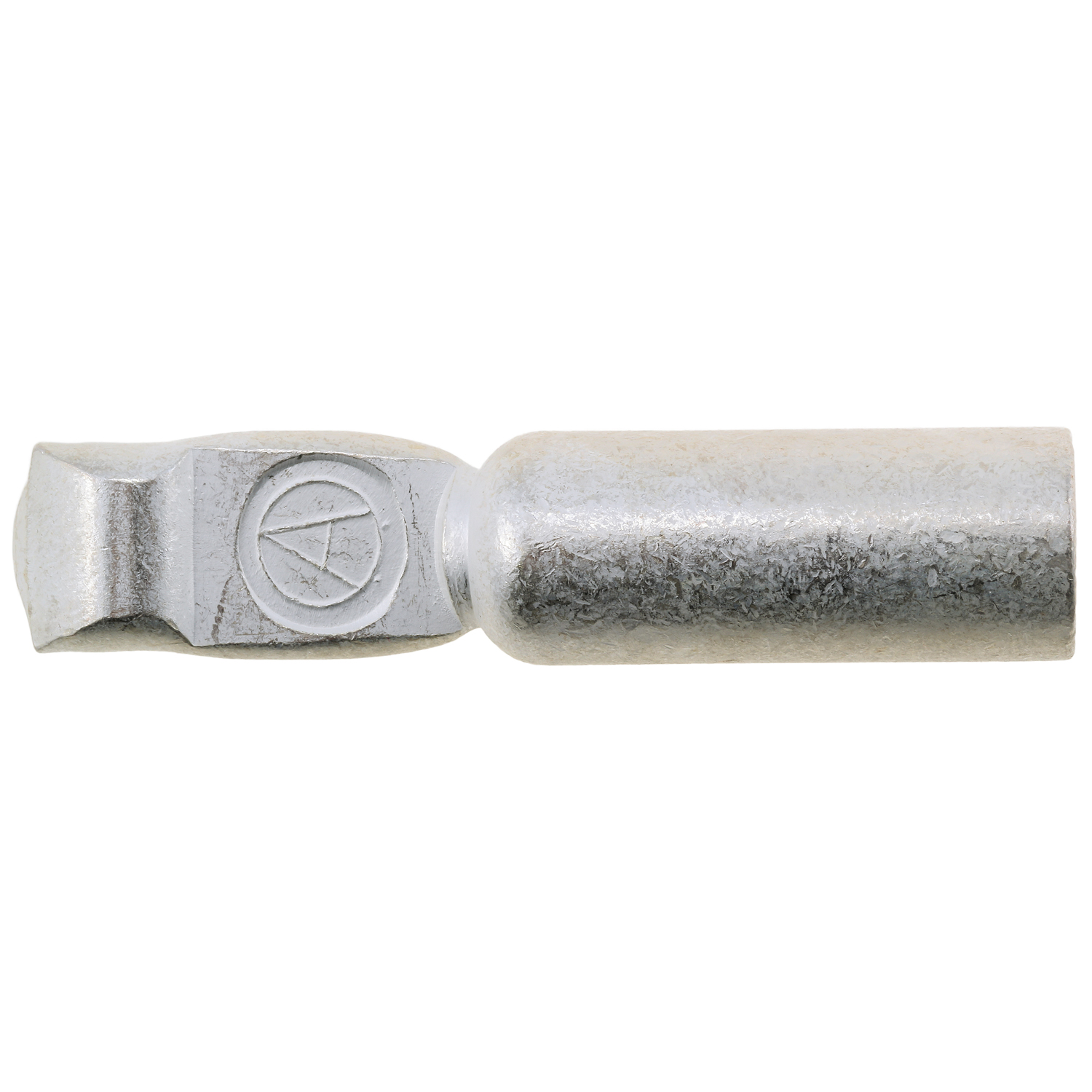

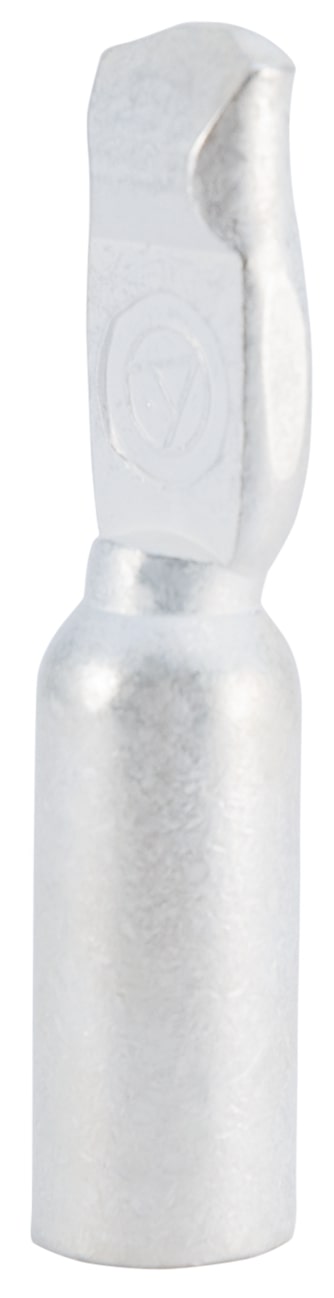

The SB® Crimp Connector is made of silver-plated solid copper. Excellent for general commercial and industrial applications.
Downloads
123104 INFO
Last Updated: 06/10/2022
Specification Details
| Parts per Unit | 10, 50 |
|---|---|
| Features | Excellent for general commercial and industrial applications, Final assemblies meet UL and CSA specifications, when all components are made and crimped with a UL listed tooll, Housings lock together to create custom solutions, Solid copper contact, Use a crimp tool for solid dependable crimps |
| Amps | 175 A |
| Application | General Commercial and Industrial Applications |
| Gauge | 4 |
| Maximum Voltage | 600 V |
| Pack Type | Bag |
| Plating Material | Silver |
| SAE | No |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -20 to 105°C |
| Temperature Range (°F) | -4 to 221°F |
| Termination Material | Silver Plated Copper |
| Termination Method | Crimp |
| UL / CSA | No |
| Works With | SB |
| Brand | SB |
| Color | Silver |
| Product Length | 2.35 in |
| Product Width | 0.50 in |
| Product Type | Contact |
| RoHS Compliant | Yes |
| SKU | 123104-010, 123104-050, 123104A |
| Product Height | 0.50 in |
| Product Weight | 0.09 lb |
| Country of Origin | USA |
