160263

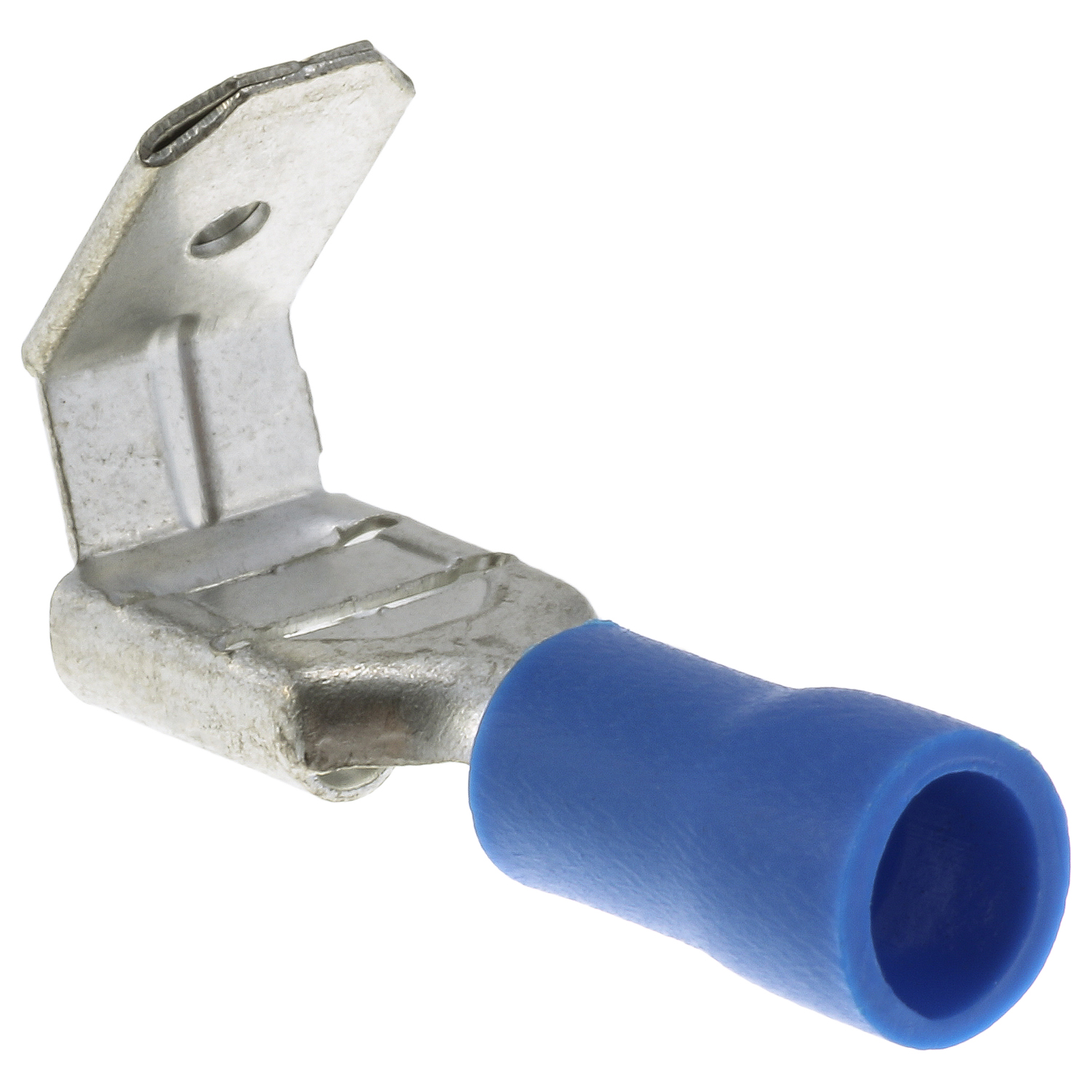

The PVC Insulated Solderless Piggyback Disconnect is made of tin-plated annealed copper for improved corrosion resistance, maximum conductivity and crimp strength.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
160101-160680 SDS
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 100, 1000, 25, 8 |
|---|---|
| Features | For general purpose applications, Tin-plated, annealed copper for improved corrosion resistance, max conductivity and crimp strength |
| Product Height | 0.18 in |
| SKU | 160263, 160263-025, 160263-100, 160263-1000, 160263-2008, 160263-2100 |
| RoHS Compliant | Yes |
| Product Width | 0.26 in |
| Product Length | 0.87 in |
| Color | Blue |
| Brand | Not branded |
| Works With | General Purpose |
| UL / CSA | No |
| Termination Method | Crimp |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| Stud/Tab Size | 1/4 in |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Insulation Material | PVC |
| Gauge | 14, 16 |
| Application | For general purpose applications |
| Product Weight | 0.003 lb |
| Country of Origin | Taiwan |
