163225
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100, 1000, 50 |
|---|---|
| Features | 3 part construction contains: inner lug, additional copper sleeve for added strength, crimpability and seamless outer nylon cover, Designed for heavy duty applications to resist vibration and moisture, Serrated barrel for greater wire retention/ pullout strength, Tin plated annealed copper for improved corrosion resistance, max conductivity and crimp strength |
| Product Height | 0.20 in |
| SKU | 163225, 163225-050, 163225-100, 163225-1000 |
| RoHS Compliant | Yes |

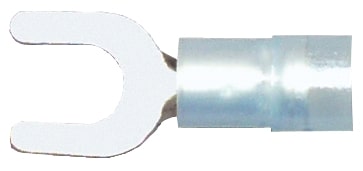

| Product Type | Spade Double Crimp |
| Product Width | 0.31 in |
| Product Length | 0.87 in |
| Color | Blue |
| Brand | Not branded |
| Works With | Primary Wire |
| UL / CSA | No |
| Termination Method | Crimp |
| Termination Material | Copper |
| Subject to Prop 65 | No |
| Stud/Tab Size | #8 |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Maximum Voltage | 600 V |
| Insulation Material | Nylon |
| Insulation Color | Blue |
| Gauge | 14, 16 |
| Application | General Purpose |
| Product Weight | 0.002 lb |
| Country of Origin | Taiwan |
