Products • 200102
200102

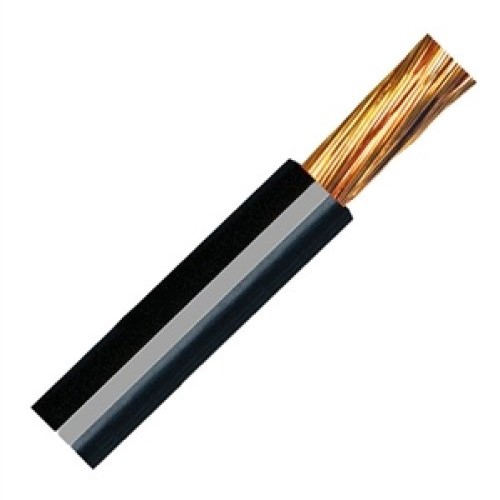

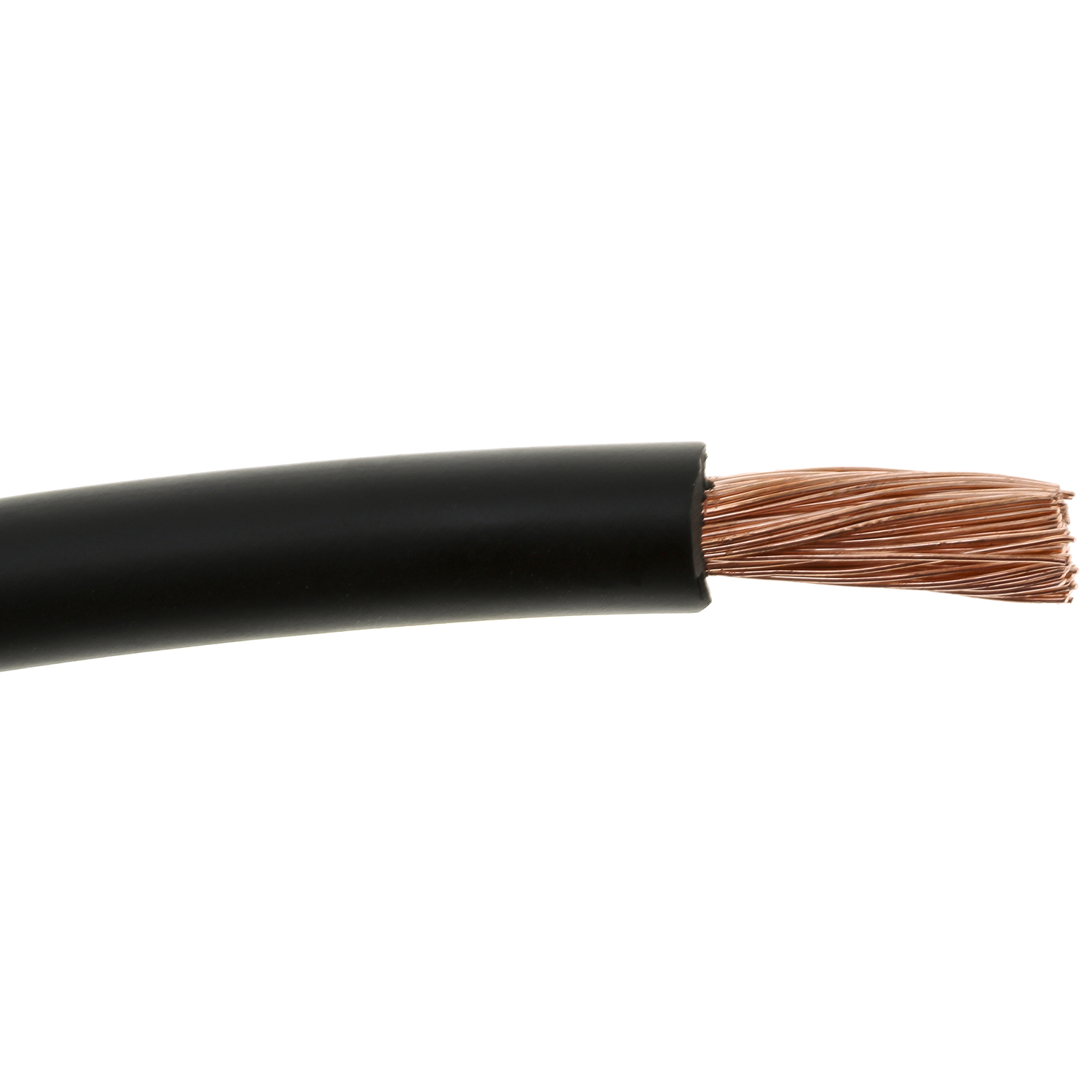

The Standard Battery Cable is made of annealed, stranded copper conductor and flame retardant PVC insulation which meets SAE, J1128 and AWG specifications.
Specification Details
| Parts per Unit | 10, 100, 25, 250, 50, 500 |
|---|---|
| Features | Copper conductor for maximum conductivity, Insulation is flame-retardant, Meets or exceeds SAE J1127, SGT type, PVC insulation resists abrasion, fuel, oil, acid and salt |
| Application | Automotive, Commercial, Industrial, Truck |
| Gauge | 6 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | PVC |
| Insulation Thickness | 0.042 in |
| Pack Type | Roll |
| Prop 65 Item | DEHP, DINP |
| SAE | J1127 |
| Strand Count | 48 |
| Strand Gauge | 22.5 |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -50 to 105°C |
| Temperature Range (°F) | -58 to 221°F |
| UL / CSA | No |
| Voltage | 60 V |
| Works With | Copper Connectors |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.30 in |
| Color | Black |
| Product Length | 10.25 in, 12.00 in |
| Product Width | 1.62 in, 10.25 in, 12.00 in |
| RoHS Compliant | Yes |
| SKU | 200102, 200102-010, 200102-025, 200102-050, 200102-100, 200102-250, 200102-500 |
| Cable Length | 10 ft, 100 ft, 25 ft, 250 ft, 50 ft, 500 ft |
| Product Weight | 1.19 lb, 11.53 lb, 3.00 lb, 33.07 lb, 37.88 lb, 5.82 lb |
| Country of Origin | USA |
