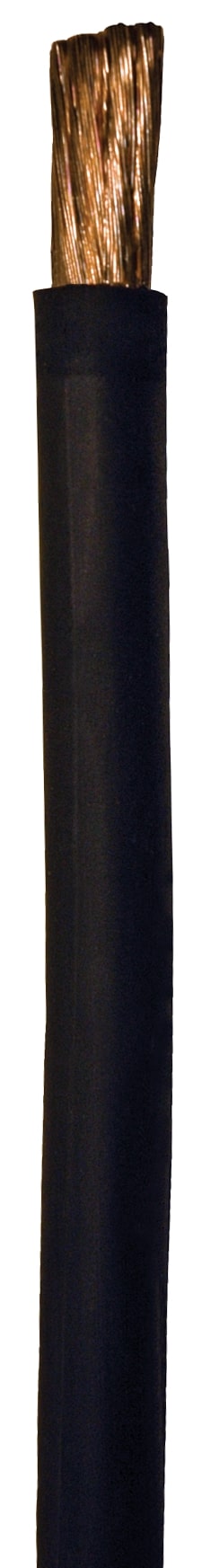

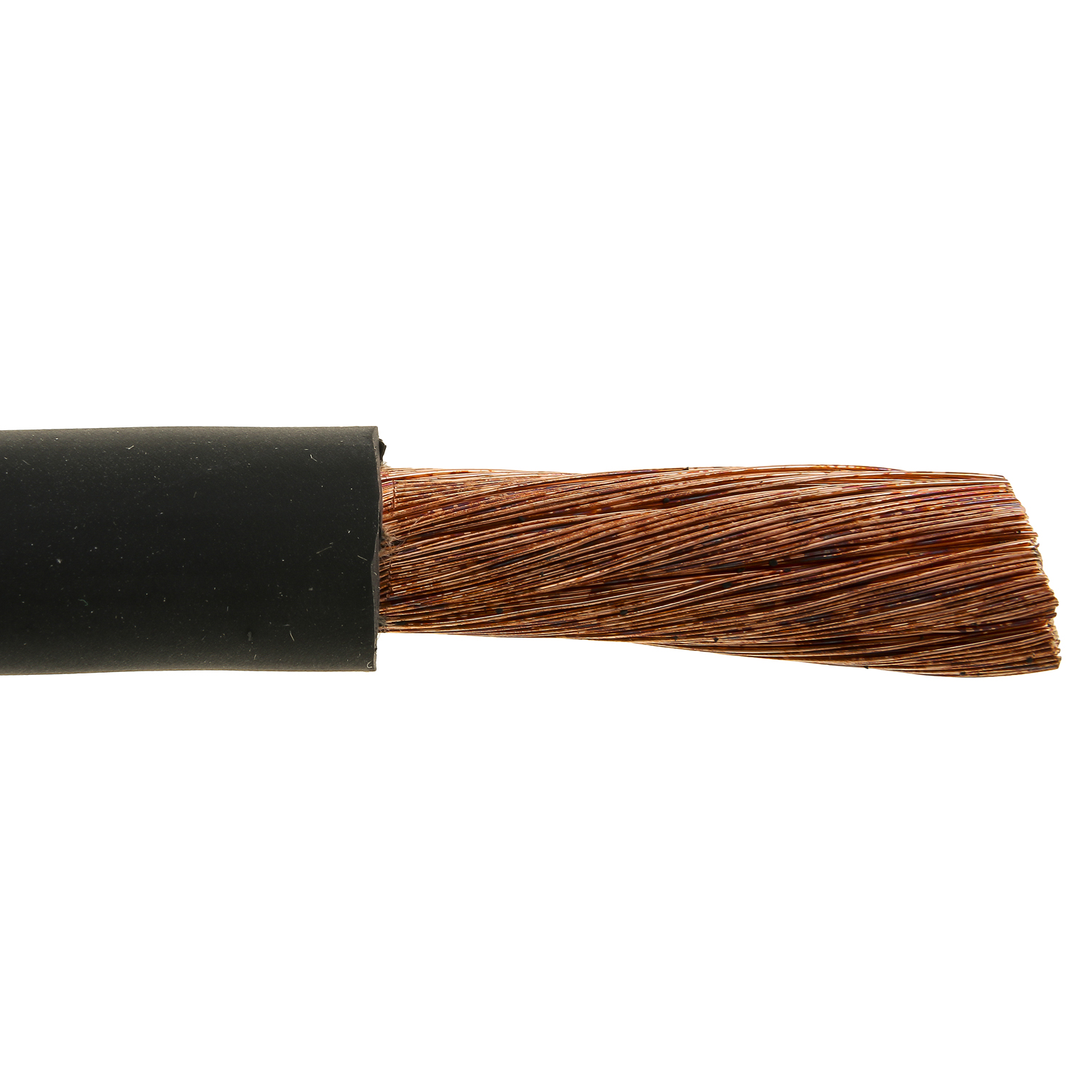

202104
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
Specification Details
| Parts per Unit | 10, 100, 25, 250, 50, 500 |
|---|---|
| Features | Abrasion salt and chemical-resistant synthetic rubber insulation, Fine-stranded copper conductor for maximum conductivity and flexibility, Good flame resistance |
| Cable Length | 10 ft, 100 ft, 25 ft, 250 ft, 50 ft, 500 ft |
| SKU | 202104, 202104-010, 202104-025, 202104-050, 202104-100, 202104-250, 202104-500 |
| RoHS Compliant | Yes |
| Product Width | 1.62 in, 10.25 in, 12.00 in, 6.00 in |
| Product Length | 10.25 in, 12.00 in, 14.00 in |
| Color | Black |
| Cable Nominal Outer Diameter | 0.42 in |
| Brand | Not branded |
| Works With | Copper Connectors |
| Voltage | 600 V |
| UL / CSA | No |
| Temperature Range (°F) | -58 to 221°F |
| Temperature Range (°C) | -50 to 105°C |
| Subject to Prop 65 | No |
| Strand Gauge | 30 |
| Strand Count | 624 |
| SAE | No |
| Pack Type | Roll |
| Insulation Thickness | 0.07 in |
| Insulation Material | Synthetic Rubber |
| Cable Nominal Outer Diameter | |
| Conductor Material | Copper |
| Gauge | 2 |
| Application | Power Supply, Welding |
| Product Weight | 12.32 lb, 126.48 lb, 2.46 lb, 24.84 lb, 6.18 lb, 63.98 lb |
| Country of Origin | USA |
