Products • 205108
205108

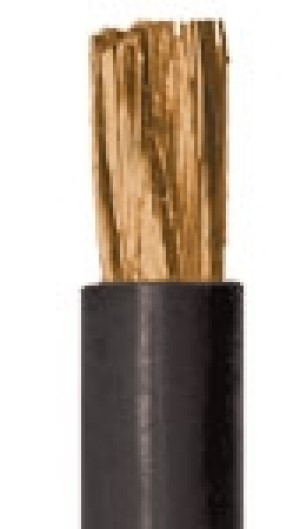

The SGX Battery Cable is made of soft-annealed, bare copper conductor for increased flexibility. It has chemically cross-linked polyolefin (XLPO) insulation.
Specification Details
| Parts per Unit | 100, 25, 50 |
|---|---|
| Features | Annealed, bare copper conductor, more flexible, Available certifications: – Ford: ESB-M1L85-A, ESF-M1L92-A – Chrysler: MS-5919 – Delphi: ESM-3024, Chemically cross-linked polyolefin (XLPO) insulation |
| Application | High Temperature Applications |
| Gauge | 3/0 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | XLPO |
| Insulation Thickness | 0.078 in |
| Pack Type | Roll |
| SAE | J1654 |
| Strand Count | 1615 |
| Strand Gauge | 30 |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -40 to 125°C |
| Temperature Range (°F) | -40 to 257°F |
| UL / CSA | No |
| Voltage | 60 V |
| Works With | Copper Connectors |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.654 in |
| Color | Black |
| Product Length | 10.25 in, 14.00 in |
| Product Width | 1.62 in, 10.25 in, 6.00 in |
| RoHS Compliant | Yes |
| SKU | 205108, 205108-025, 205108-050, 205108-100 |
| Cable Length | 100 ft, 25 ft, 50 ft |
| Product Weight | 19.80 lb, 39.60 lb, 9.90 lb |
| Country of Origin | USA |
