214105

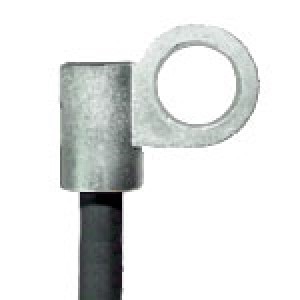

The Pre-Made One Post-hole Offset Leadhead Cable Assembly is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 1 |
|---|---|
| Assembly Cable Length | 60.00 in |
| SKU | 214105, 214105-001 |
| Works With | Intercell Connectors |
| RoHS Compliant | No |
| Product Length | 60.00 in |
| Orientation | Offset |
| Brand | Not branded |
| Application | Material Handling |
| UL / CSA | No |
| Termination Method | Solder |
| Termination Material | Lead |
| Subject to Prop 65 | Yes |
| Number of Termination Ends | 1 |
| Temperature Range (°C) | -50 to 105 °C |
| Strand Count | 644 |
| SAE | No |
| RoHS Item | Lead |
| Prop 65 Item | DINP, Lead |
| Polarity | Negative |
| Pack Type | Bag |
| Body Material | Lead |
| Product Weight | 3.64 lb |
| Stud Hole Size | 15/16 in |
| Temperature Range (°F) | -58 to 221 °F |
