Products • 214795
214795

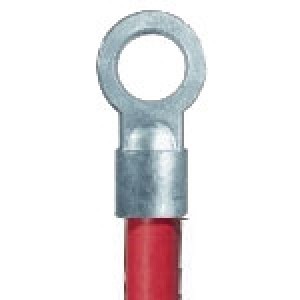

The Pre-Made Straight Standard Bore Leadhead Cable is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.
Specification Details
| Parts per Unit | 1 |
|---|---|
| Features | 15/16" post hole (.937", 24 mm), Made with welding cable, hot tinned for maximum conductivity, flexibility and best for corrosion resistance, Silicone seal keeps moisture and acid out, extending cable life |
| Product Weight | 6.10 lb |
| Gauge | 4/0 |
| Connection Type | Standard |
| Body Material | Lead |
| Pack Type | Bag |
| Polarity | Positive |
| Prop 65 Item | DINP, Lead |
| RoHS Item | Lead |
| SAE | No |
| Strand Count | 2052 |
| Stud Hole Size | 15/16 in |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -50 to 105 °C |
| Temperature Range (°F) | -58 to 221 °F |
| Termination Material | Lead |
| Termination Method | Solder |
| UL / CSA | No |
| Application | Material Handling |
| Brand | Not branded |
| Color | Red |
| Orientation | Straight |
| Product Length | 120.00 in |
| RoHS Compliant | No |
| Works With | Intercell Connectors |
| SKU | 214795, 214795-001 |
| Assembly Cable Length | 120.00 in |
| Number of Termination Ends | 2 |
| Country of Origin | USA |
