Products • 230209
230209

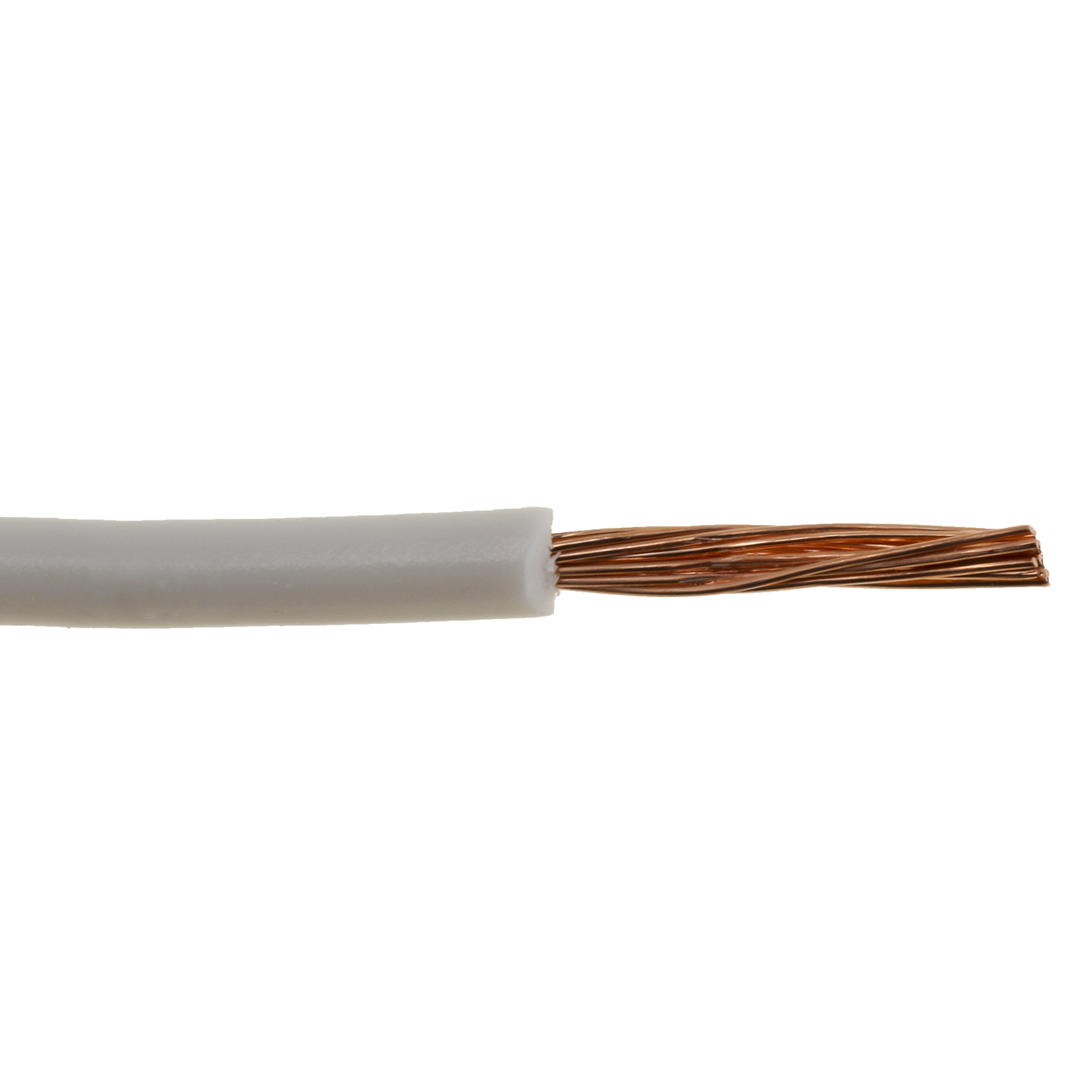

The GPT General Purpose Primary Wire is constructed from fine-stranded copper and coated with a flexible PVC insulation.
Specification Details
| Parts per Unit | 100, 1000, 45 |
|---|---|
| Features | Copper stranded conductor for maximum conductivity, For use at 60V or less, Meets or exceeds SAE J1128, PVC insulation resists abrasion, fuel, oil, acid and salt |
| Product Weight | 0.50 lb, 1.00 lb, 12.00 lb |
| Application | General Purpose |
| Gauge | 18 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | PVC |
| Insulation Thickness | 0.023 in |
| Pack Type | Roll |
| Prop 65 Item | DEHP, DINP |
| SAE | J1128 |
| Strand Count | 16 |
| Strand Gauge | 30 |
| Temperature Range (°C) | -40 to 80°C |
| Subject to Prop 65 | Yes |
| Temperature Range (°F) | -40 to 176°F |
| UL / CSA | No |
| Voltage | 60 V |
| Works With | Automotive Connections |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.095 in |
| Color | White |
| Product Length | 2.12 in, 3.50 in, 6.44 in |
| Product Width | 2.12 in, 3.50 in, 6.44 in |
| RoHS Compliant | Yes |
| SKU | 230209, 230209-045, 230209-100, 230209-1000, 230209-2045 |
| Cable Length | 100 ft, 1000 ft, 45 ft |
| Country of Origin | USA |
