Products • 231409
231409

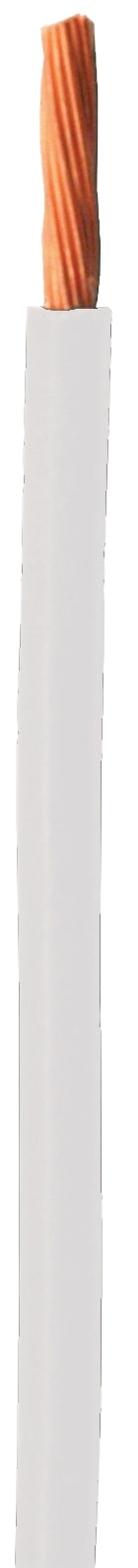

The SXL Cross-Link Polyethylene Primary Wire is designed for harsh, hot environments. It is made of 100% fine-stranded copper and coated with a flexible PVC insulation.
Specification Details
| Parts per Unit | 100, 1000 |
|---|---|
| Features | Best resistance to abrasion, fuel, oil, acid and salt, Copper stranded conductor for maximum conductivity, Designed for harsh, hot environments |
| Application | Hard Enviornments |
| Gauge | 14 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | XLPE |
| Insulation Thickness | 0.03 in |
| Pack Type | Roll |
| Prop 65 Item | DEHP, DINP |
| SAE | J1128 |
| Strand Count | 19 |
| Strand Gauge | 27 |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -51 to 125°C |
| Temperature Range (°F) | -60 to 257°F |
| UL / CSA | Yes |
| Voltage | 60 V |
| Works With | Automotive Connections |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.13 in |
| Color | White |
| Product Length | 3.50 in, 6.25 in |
| Product Width | 3.50 in, 6.25 in |
| RoHS Compliant | Yes |
| SKU | 231409, 231409-100, 231409-1000 |
| Cable Length | 100 ft, 1000 ft |
| Product Weight | 1.75 lb, 2.75 lb |
| Country of Origin | USA |
