Products • 233202
233202

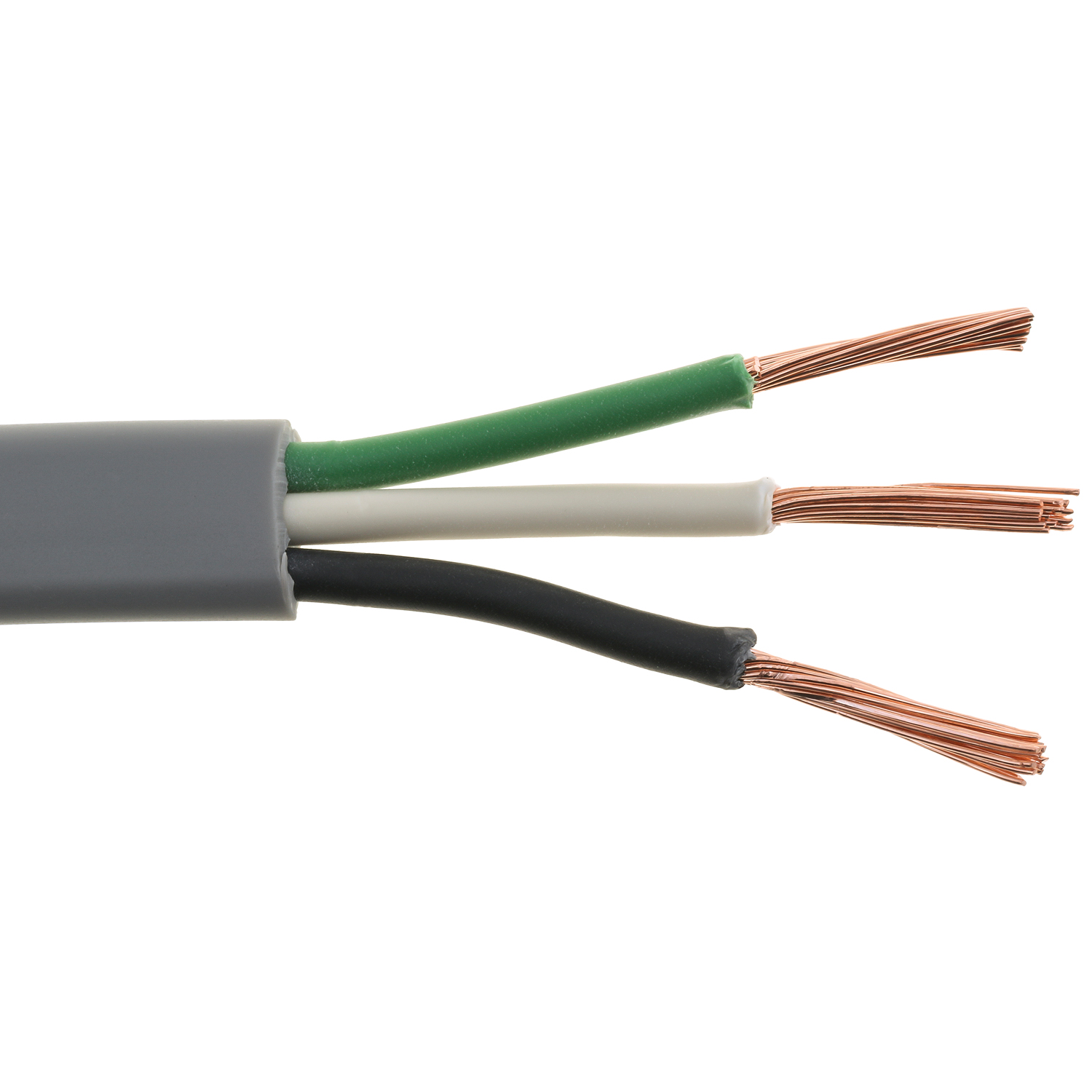

The Multi Conductor Flat Jacketed Control Cable is made of fine-stranded copper conductor for maximum conductivity and flexibility. It is ideally suited for auto, truck, agriculture, construction, and light marine applications.
Specification Details
| Parts per Unit | 100, 1000 |
|---|---|
| Features | Also known as Brake Cable, Copper stranded conductor for maximum conductivity, For use at 60V or less, Heavy duty flat PVC gray outer jacket is abrasionresistant and protects against moisture, oil, acid and salt |
| Application | Auto, truck, agriculture, construction and light marine applications |
| Gauge | 14 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | PVC |
| Insulation Thickness | 0.02 in |
| Jacket Material | PVC |
| Jacket Thickness | 0.03 in |
| Number of Conductors | 3 |
| Pack Type | Roll |
| SAE | J1128, J1128, J378 |
| Strand Count | 19 |
| Strand Gauge | 27 |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -40 to 105°C |
| Temperature Range (°F) | -40 to 221°F |
| UL / CSA | No |
| Voltage | 60 V |
| Works With | 50 V or Less |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.177 x 0.411 in |
| Color | Black, Green, White |
| Product Length | 17.50 in, 6.25 in |
| Product Width | 17.50 in, 6.25 in |
| RoHS Compliant | Yes |
| SKU | 233202, 233202-100, 233202-1000 |
| Cable Length | 100 ft, 1000 ft |
| Product Weight | 8.00 lb, 80.00 lb |
| Country of Origin | USA |
