Products • 236406
236406

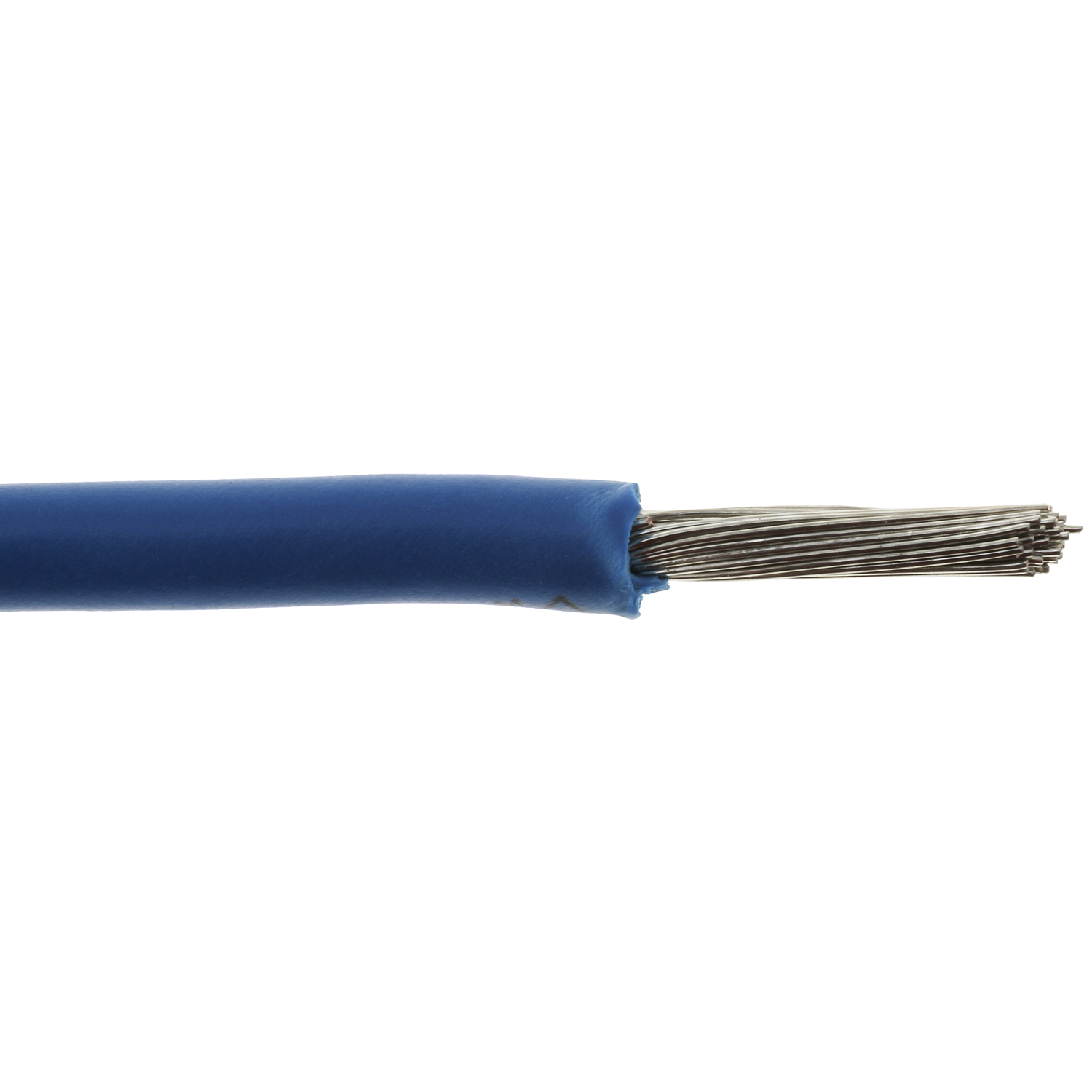

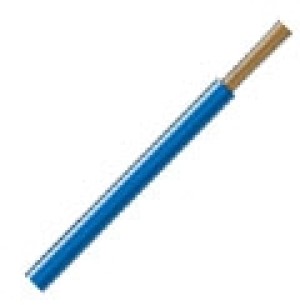

The TEW Primary Wire is suitable for wet or dry applications. It is made of 100% fine-stranded copper and coated with a flexible PVC insulation.
Specification Details
| Parts per Unit | 100 |
|---|---|
| Features | Copper stranded conductor for maximum conductivity, Designed for wet or dry applications, Temperature range: 221°F (105°C) dry to 140°F (60°C) in oil |
| Application | Wet or Dry Applications |
| Gauge | 14 |
| Conductor Material | Copper |
| Cable Nominal Outer Diameter | |
| Insulation Material | PVC |
| Insulation Thickness | 0.03 in |
| Pack Type | Roll |
| Prop 65 Item | DEHP, DINP |
| SAE | No |
| Strand Count | 41 |
| Strand Gauge | 30 |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -40 to 105°C |
| Temperature Range (°F) | -40 to 221°F |
| UL / CSA | Yes |
| Voltage | 600 V |
| Works With | Automotive Connections |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.13 in |
| Color | Blue |
| Product Length | 3.50 in |
| Product Width | 3.50 in |
| RoHS Compliant | Yes |
| SKU | 236406, 236406-100 |
| Cable Length | 100 ft |
| Product Weight | 2.25 lb |
| Country of Origin | USA |
