236509

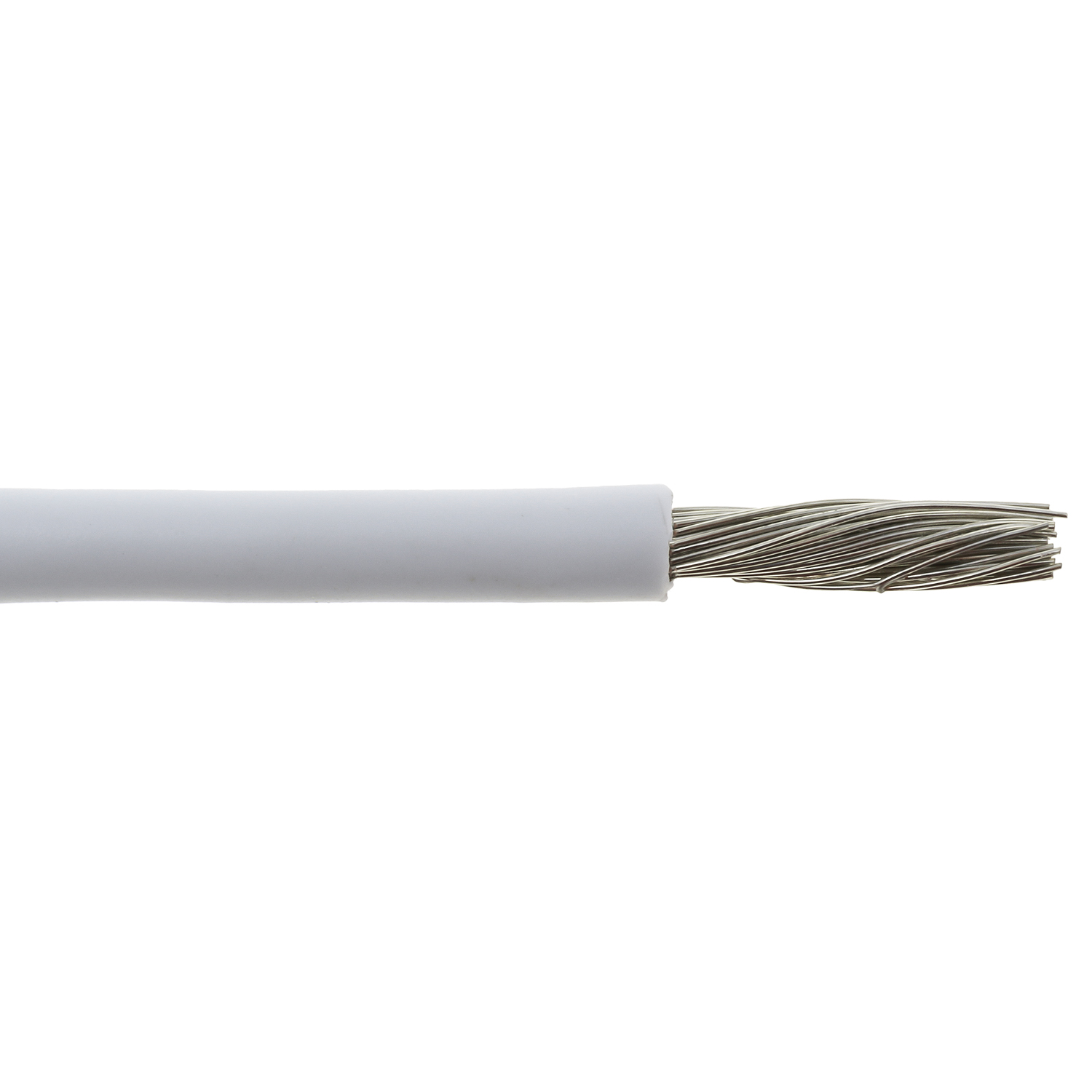

The TEW Primary Wire is suitable for wet or dry applications. It is made of 100% fine-stranded copper and coated with a flexible PVC insulation.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 100 |
|---|---|
| Features | Copper stranded conductor for maximum conductivity, Designed for wet or dry applications, Temperature range: 221°F (105°C) dry to 140°F (60°C) in oil |
| Product Weight | 3.00 lb |
| Cable Length | 100 ft |
| SKU | 236509, 236509-100 |
| RoHS Compliant | Yes |
| Product Width | 3.50 in |
| Product Length | 3.50 in |
| Color | White |
| Cable Nominal Outer Diameter | 0.16 in |
| Brand | Not branded |
| Works With | Automotive Connections |
| Voltage | 600 V |
| UL / CSA | Yes |
| Temperature Range (°F) | -40 to 221°F |
| Temperature Range (°C) | -40 to 105°C |
| Subject to Prop 65 | Yes |
| Strand Gauge | 30 |
| Strand Count | 65 |
| Prop 65 Item | DEHP, DINP |
| Pack Type | Roll |
| Insulation Thickness | 0.03 in |
| Insulation Material | PVC |
| Cable Nominal Outer Diameter | |
| Conductor Material | Copper |
| Gauge | 12 |
| Application | Wet or Dry Applications |
| SAE | No |
| Country of Origin | USA |
