7015

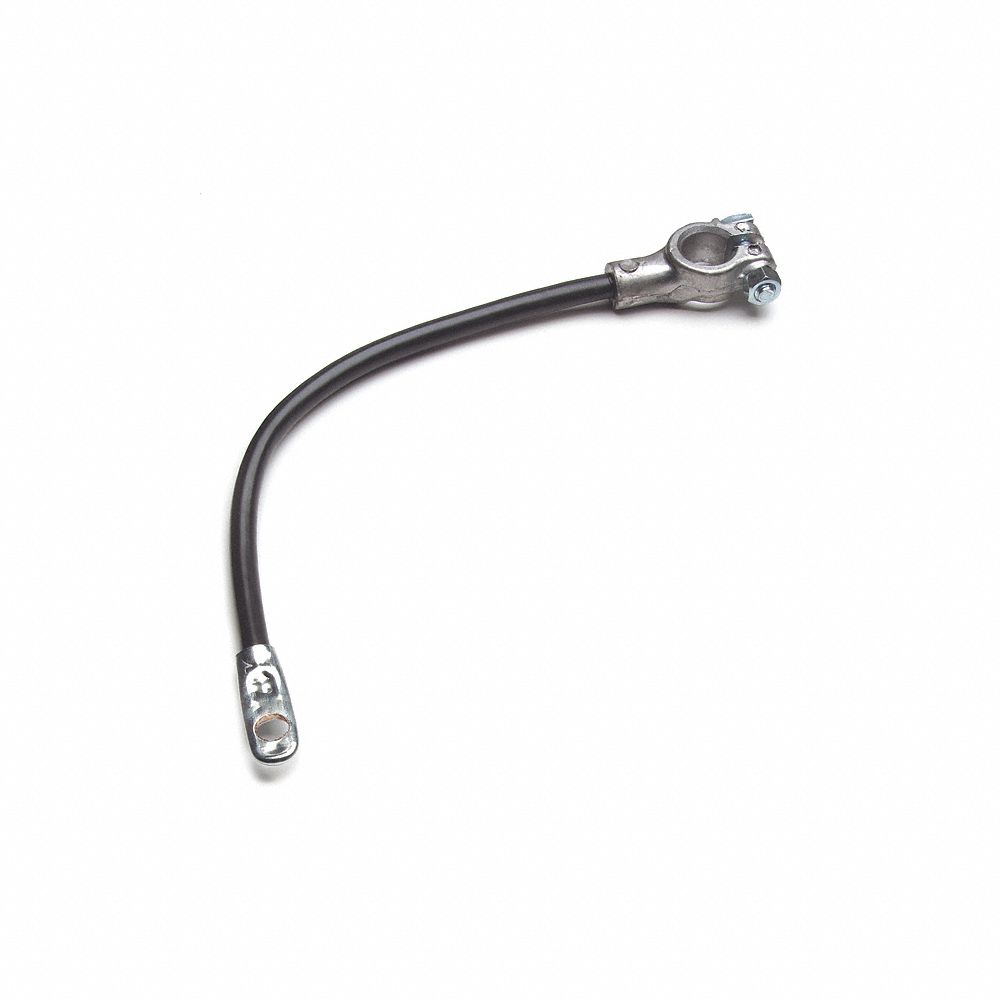

The Top Post-to-Lug Cable Assembly (Black) is made of fine stranded copper conductor and tin-plated for maximum conductivity, flexibility, and corrosion resistance.

Downloads

7015& INFO Last Updated: 06/09/2022

Specification Details

Parts per Unit

1, 25

Features

All have a standard 3/8" stud hole, Antimonial lead connectors resist corrosion, die cast process seals copper wire from acid fumes and corrosive salts, Copper conductor for maximum conductivity, Meets or exceeds SAE specifications, ideal for OEM replacement, Standard Retail Cables, Temperature range: 221°F (105°C) to -58°F (-50°C), Tinning of copper wire before casting ensures durable bond between wire and connector

Application

Light Duty Cars, RVs, Trucks, Vans

Gauge

4

Connection Type

Clamp to Lug, Clamp to Thimble

Cable Nominal Outer Diameter

Insulation Material

PVC

Insulation Thickness

0.06 in

Pack Type

Bag, Box

Polarity

Negative

Prop 65 Item

DEHP, DINP, Lead

RoHS Item

Lead

SAE

Yes

Strand Count

70

Stud Hole Size

3/8 in

Subject to Prop 65

Yes

Temperature Range (°C)

-50 to 105°C

Temperature Range (°F)

-58 to 221°F

Termination Material

Copper, Lead, Steel

Termination Material Plating

Thimble

No, Yes

UL / CSA

No

Brand

Not branded

Cable Nominal Outer Diameter

0.28 in

Color

Black

Product Length

15.00 in

RoHS Compliant

No

Termination Material Plating

Tin

Works With

Side Posts, Top Post

SKU

7015, 7015-001, 7015-025, 7015-2001, 7015T-001, 7015T-025, 7015T-2001

Assembly Cable Length

15.00 in

Product Weight

0.48 lb

Country of Origin

USA
