Products • 7655
7655

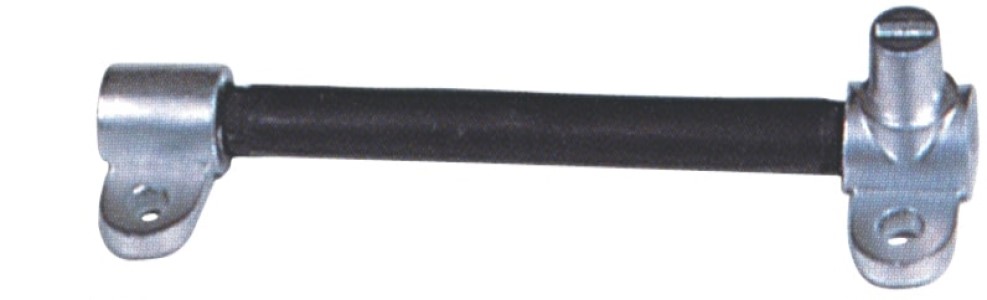

The Stud-to-Power Take-off Post is made of fine stranded copper for maximum conductivity and flexibility. It is the most efficient way to connect two paralleled batteries for delivery of maximum starting power at the same voltage.
Downloads
7655 INFO
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 1 |
|---|---|
| Features | 2/0 gauge PVC-Insulated copper cable, Exceeds SAE specifications, For Parallel Connection of 2 or 3 Batteries, Ideal for Group 27, Group 31 batteries and similar batteries, Most efficient way to connect two or three paralleled batteries for delivery of maximum starting power at same voltage, Temperature range: 221°F (105°C) to -58°F (-50°C) |
| Gauge | 2/0 |
| Connection Type | Post to Post |
| Insulation Material | PVC |
| Insulation Thickness | 0.06 in |
| Number of Batteries | 2 |
| Number of Leads | 2 |
| Pack Type | Bag |
| Polarity | Negative |
| Prop 65 Item | DEHP, DINP, Lead |
| RoHS Item | Lead |
| SAE | No |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -50 to 105°C |
| Temperature Range (°F) | -58 to 221°F |
| Termination Material | Lead |
| Thimble | No |
| UL / CSA | No |
| Application | Automotive, Industrial |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.60 in |
| Color | Black |
| Product Length | 14.00 in |
| Product Type | Battery Jumper |
| RoHS Compliant | No |
| Works With | Motive Batteries |
| SKU | 7655, 7655-001 |
| Assembly Cable Length | 14 in |
| Post Hole Spacing | 14.00 in |
| Product Weight | 1.28 lb |
| Stud Post Size | .620 in |
| Country of Origin | USA |
