7787

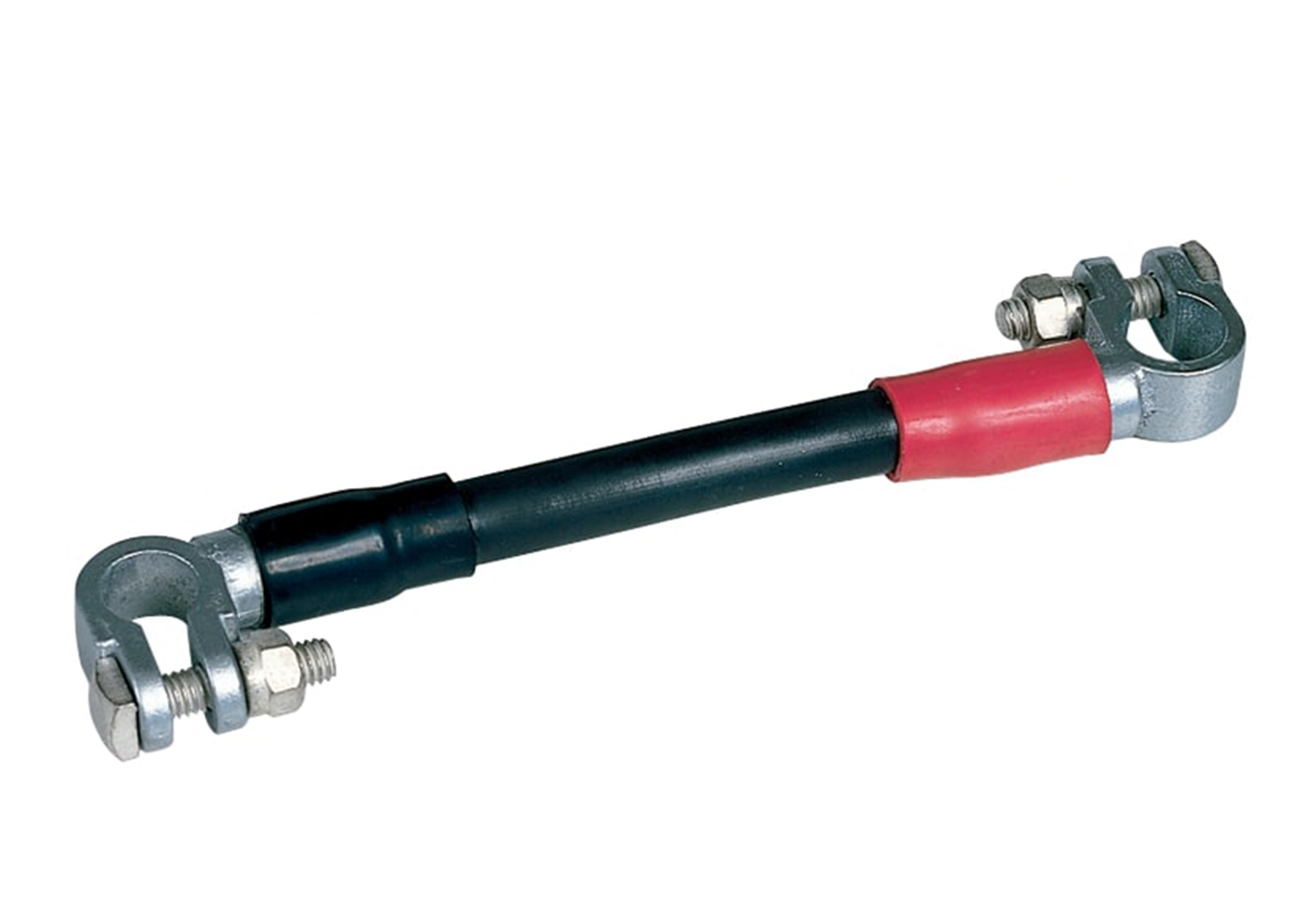

The Lead Offset Jumper is made of premium quality synthetic rubber insulated copper welding cable that enables easy routing and cold weather flexibility. It is the most efficient way to connect two paralleled batteries for delivery of maximum starting power at the same voltage.
Downloads
7787 INFO
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 1, 5 |
|---|---|
| Features | Designed for series connection of two batteries to achieve additive voltage, Premium quality synthetic rubber insulated copper welding cable enables easy routing and cold weather flexibility |
| Gauge | 2/0 |
| Connection Type | Clamp to Clamp |
| Insulation Material | Synthetic Rubber |
| Insulation Thickness | 0.08 in |
| Number of Batteries | 2 |
| Number of Leads | 2 |
| Pack Type | Bag |
| Polarity | Negative, Positive |
| Prop 65 Item | DEHP, DINP, Lead |
| RoHS Item | Lead |
| SAE | Yes |
| Subject to Prop 65 | Yes |
| Temperature Range (°C) | -50 to 105°C |
| Temperature Range (°F) | -58 to 221°F |
| Termination Material | Copper |
| Thimble | No |
| UL / CSA | No |
| Application | Automotive, Industrial |
| Brand | Not branded |
| Cable Nominal Outer Diameter | 0.60 in |
| Color | Black |
| Product Length | 12.00 in |
| Product Type | Battery Jumper |
| RoHS Compliant | Yes |
| Works With | Motive Batteries |
| SKU | 7787, 7787-001, 7787-005 |
| Assembly Cable Length | 12 in |
| Post Hole Spacing | 12.00 in |
| Product Weight | 0.78 lb |
| Country of Origin | USA |
